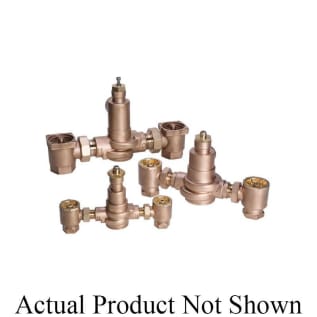

Powers™ HydroGuard® 6550051 LFMM430 XP Master Tempering Valve, 1-1/4 in Nominal, NPT End Style, 125 psi Pressure, 110 gpm Flow Rate, Brass Body, Domestic
Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 1-1/4 in Nominal, NPT, 125 psi, 5 to 200 deg F, 110 gpm, Media: Water, Brass Body, Rough Bronze, 15-1/4 in L, Domestic
- Rotatable union triple-duty checkstops
- Vandal-resistant, locking mechanism to secure temperature setting
- Virtual shutoff if supply pressure fails
- Mounts in any position
- 90 to 160 deg F adjustment temperature
- Dirt and lime resistant poppet and seat design
- The wetted surface of this product contacted by consumable water contains less than 0.25 Percent of lead by weight
- Standard/Approvals: ASSE 1017|Advanced Thermal Activation|CSA B125|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 year Limited
Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 1-1/4 in Nominal, NPT, 125 psi, 5 to 200 deg F, 110 gpm, Media: Water, Brass Body, Rough Bronze, 15-1/4 in L, Domestic
This HydroGuard(R) XP lead free master mixing valve with proven reliability is ideal for commercial and institutional applications. It features 1 1/4 inch NPT connections, a rough bronze finish, vandal resistant temperature setting for safety, paraffin-based actuator, corrosion resistant internals to resist seizing or sticking in harsh water conditions, and triple-duty union check stops with screens to prevent cross-flow and contamination. The valve is factory tested to ensure optimal, consistent performance for many years. The temperature range is 90 to 160 degrees F (32 to 71 degrees C) and the maximum operating pressure is 125 psi (861 kPa). The valve capacity is 110 GPM (416 LPM) at 45 psi (310 kPa).
- Brand: Powers™Body Material: BrassDimensions: 15-1/4 in LDomestic/Import: DomesticEnd Style: NPTFinish: Rough BronzeFlow Rate: 110Media: WaterNominal Size: 1-1/4Pressure Rating: 125Series: LFMM430Temperature Rating: 5 to 200
