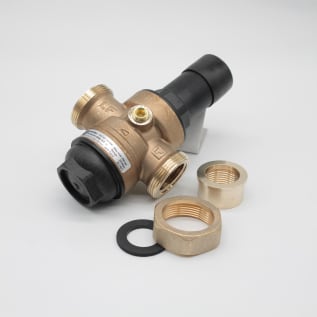

Resideo Braukmann DS06-102-SUT-LF/U Pressure Regulating Valve, 1 in, FNPT, 250 psi, Bronze Body, Import
Resideo Braukmann No Lead Pressure Regulating Valve, Series: DS06, 1 in Nominal, FNPT, 250 psi, 140 deg F Operating, Media: Potable Water, Bronze Body, 6-15/16 in H x 5 in L, Import
- Built-In Dial-Set®- no gauge is needed to install or set static pressure
- Non-corroding unitized cartridge - contains all working parts and is easily replaceable
- Install it just about anywhere
- The internal and external threading allows for use in thread-by-thread, single union or double-union configurations
- 1/4 in NPT tap accessible from both sides to validate output
- Built in strainer to simplify maintenance
- 25 to 90 psi outlet pressure adjustment range
- Calibrated adjustment dial
- 10:1 maximum reducing ratio
- Internal parts: Stainless steel and engineered plastics
- Regulator mechanism: Fabric-reinforced diaphragm
- Dial Calibration (+/-) 4 psi
- Standard/Approvals: ASSE 1003-2009|CSA B356-10|IAPMO/UPC Listed|NSF 61 Approved
Resideo Braukmann No Lead Pressure Regulating Valve, Series: DS06, 1 in Nominal, FNPT, 250 psi, 140 deg F Operating, Media: Potable Water, Bronze Body, 6-15/16 in H x 5 in L, Import
The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
- Brand:Â Resideo BraukmannBody Material:Â BronzeDimensions:Â 6-15/16 in H x 5 in LDomestic/Import:Â ImportEnd Style:Â FNPTMedia:Â Potable WaterNominal Size:Â 1Pressure Rating:Â 250Series:Â DS06Temperature Rating:Â 140 deg F Operating
