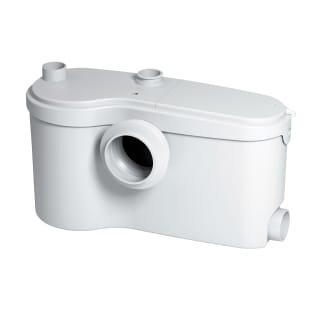

Saniflo® 013 Grinder Pump, 115 VAC
Saniflo® Grinder Pump, 2 in Inlet, 1 hp, 115 VAC, 9 A, 49 in Cord, 104 deg F
Documents
- The Sanibest® Pro is the best solution to install a full bathroom in demanding situations
- For full bathroom applications
- 25 ft vertical and/or 150 ft horizontal discharge
- Grinder system designed to handle sanitary products
- Easy access service panel
- Discharges the waste through a 3/4 or 1 in rigid pipe
- Non-return valve is included on the discharge elbow assembly provided with the system
- Elbow can be rotated 360 deg depending on the discharge installation
- Has been designed with a 1-1/2 in vent connection on the top of the lid
- All plumbing codes require connection to a vent system
- 1 hp oil filled thermally protected motor
- Will also discharge gray water from any sink, bath/shower, urinal and even a washing machine (indirect connection)
- Wastewater will drain into the system via two 2 in inlets with built-in check valves on either side of the housing, note that when adding a bathtub/shower, the base should be raised up by a minimum of 8 in off the floor
- 60 uF capacitor
- 1 hp grinder pump for commercial applications that is able to handle the accidental flushing of sanitary napkins from full bathroom applications
- Standard/Approvals: ADA Compliant|ASME A112.3.4|CSA B45.9|EPA WaterSense® Certified|UPC Listed
Saniflo® Grinder Pump, 2 in Inlet, 1 hp, 115 VAC, 9 A, 49 in Cord, 104 deg F
The Sanibest® Pro is a 1 hp pump system used to install a complete bathroom up to 25 ft below the sewer line, or even up to 150 ft away from a soil stack. It incorporates a grinder system which is ideal for uncontrolled environments in both residential and commercial applications (ie. rental unit, offices, warehouses and more). The Sanibest® Pro is designed to handle sanitary products that may have been flushed down the toilet such may consist of condoms, sanitary napkins, q-tips, dental floss and more.
- Brand: Saniflo®Amperage Rating: 9Cord Type: 49Horsepower: 1Inlet Size: 2Temperature Rating: 104Voltage Rating: 115
