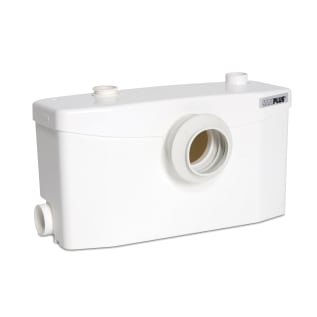

Saniflo® 002 Macerator Pump, 1.28 gpf Flow Rate, 2 in Inlet, 0.5 hp
Saniflo® Macerator Pump, 1.28 gpf Flow Rate, 2 in Inlet, 0.5 hp, 115 VAC, 4.5 A, 60 Hz Frequency, 104 deg F, 20 in W x 9-1/4 in D x 12-7/8 in H
- The original macerator for a full bathroom
- For full bathroom applications
- 15 ft vertical and/or 150 ft horizontal discharge
- Discharges the waste through a 3/4 or 1 in rigid pipe
- Non-return valve is included on the discharge elbow assembly provided with the system
- Elbow can be rotated 360 deg depending on the discharge installation
- Has been designed with a 1-1/2 in vent connection on the top of the lid
- All plumbing codes require connection to a vent system
- Must be connected to Saniflo® 1.28 gpf rear discharge toilet
- Will also discharge gray water from any sink, bath/shower or urinal
- Wastewater will drain into the system via two 2 in inlets with built-in check valves on either side of the housing, note that when adding a bathtub/shower, the base should be raised up by a minimum of 6 in off the floor
- 0.5 hp oil-filled thermally protected motor
- 45 uF capacitor
- 47-1/2 in power cord
- Γëñ 53 dBA noise level measured at 3 ft
- Standard/Approvals: ADA Compliant|ASME A112.3.4|CSA B45.9|UPC Listed|WaterSense EPA Certified
- WARRANTY: 5 Years Limited on Cutting Blade
Saniflo® Macerator Pump, 1.28 gpf Flow Rate, 2 in Inlet, 0.5 hp, 115 VAC, 4.5 A, 60 Hz Frequency, 104 deg F, 20 in W x 9-1/4 in D x 12-7/8 in H
The Saniplus® is a 1/2 hp pump system used to install a complete bathroom up to 15 ft below the sewer line or even up to 150 ft away from a soil stack. It incorporates a macerating system which can handle human waste and toilet paper in residential applications. The blade is made out of a hardened stainless steel material which eliminates the need for any service or replacement.
- Brand: Saniflo®Amperage Rating: 4.5Dimensions: 20 in W x 9-1/4 in D x 12-7/8 in HFlow Rate: 1.28Frequency Rating: 60Horsepower: 0.5Inlet Size: 2Temperature Rating: 104Voltage Rating: 115
