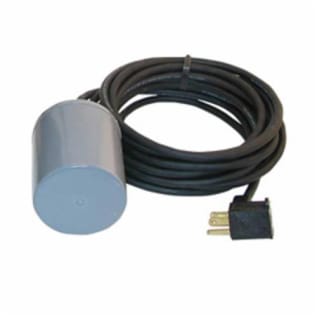

Zoeller® 10-0034 Switch-Mate Piggyback Variable Level Float Switch With Mounting Clamp, 115 VAC
Zoeller® Float Switch, Piggyback Variable Level, Series: Switch-Mate, 115 VAC, Normally Open Switch, PVC Body
Documents
- Converts a nonautomatic pump to an automatic pump
- Simple installation
- Adjustable/variable level
- Standard 15 ft and 20 ft SJOW CPE cord with molded plug
- Float constructed of durable PVC/polypropylene encasing variable level switch
- Standard normally open (NO) pumps down
- Optional normally closed available (NC) pumps up, consult factory
- Float is omnidirectional
- Variable level float switch, for use in 18 in (46 cm) Dia minimum basins
- No molded plug, can be used as a control switch to operate an external magnetic or combination starter on 3 ph pumps
- Vertical piggyback float switch, ideal for narrow diameter basins 6-1/2 in (16.5 cm) maximum cycle range
- Use recommendation chart for switch selection
- 140 deg F operating temperature
- Variable level float switches in this section are mechanically activated and do not contain mercury
- Remove plug if present and use with junction box 10-0002 when field wiring is required
- 13 A rating, 15 ft cord
- Standard/Approvals: CSA Certified|UR Approved
Zoeller® Float Switch, Piggyback Variable Level, Series: Switch-Mate, 115 VAC, Normally Open Switch, PVC Body
- Brand: Zoeller®Body Material: PVCSeries: Switch-MateSwitch Type: Normally OpenType: Piggyback Variable LevelVoltage Rating: 115
